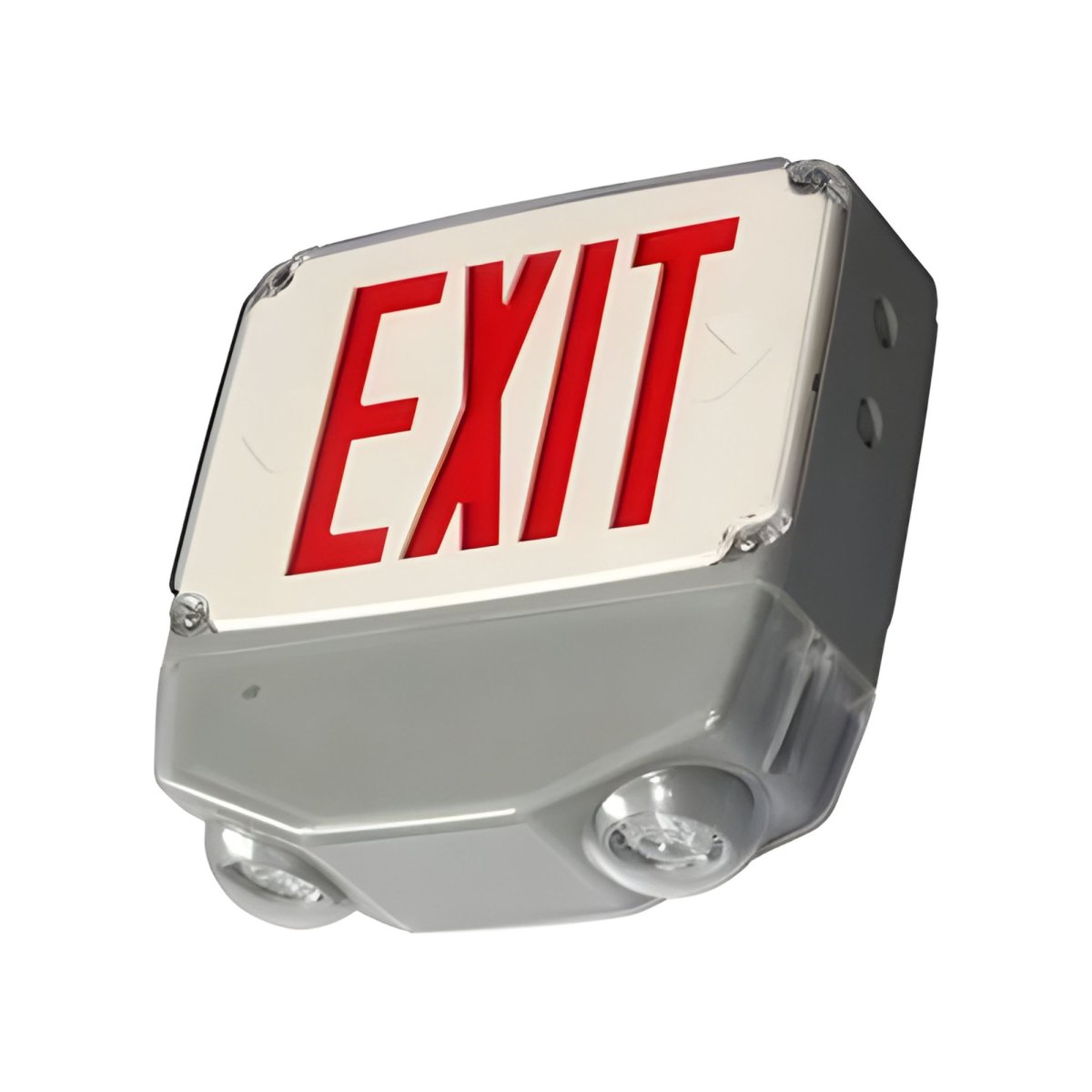

CWLEZXTEU Emergency Exit Combo

Feature:

- 5VA flame retardant, UV stabilized polycarbonate housing.
- Corrosion resistant enclosure with engineering grade silicone gasket.
- Knock-out is provided for conduit feed application.
- Easy removable snap-out Chevron directional indicators.
- Available in white, black, or grey finish.
- 90+ minute emergency operation.

Mounting:

- Universal knockout pattern on back plate for wall mount.
- Die-cast aluminum mounting canopy included for top or end mount.

Lamp:

- Long lasting, efficient, ultra bright white LED lamp heads.
- 3.6w (3 LEDs x 1.2w) per head.
- Adjustable LED lamp heads provide optimal center-to-center spacing.
- Red or Green illumination.

Electrical:

- Dual 120/277V operation standard.

Battery:

- 6V long life, maintenance free, rechargeable NiCd battery.
- Fully automatic solid state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- Internal solid-state transfer switch automatically connects the internal battery to LED board and lamp heads for minimum 90-min emergency illumination.
- Bi-color LED indicator light alerts occupant on battery condition: Green - normal, Red - check battery.

Options:

- SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meets electrical and life safety codes.
- RC: Remote capacity of up to 7.2W
- TP: Tamper-proof hardware helps discourage unauthorized access to the unit
- CW: internal heater and battery blanket for extreme cold temperature applications -4ºF (-20ºC) ~ 122ºF (50ºC)
- Custom: custom signs available with requested “special” wording.

Listing:
- 5 years limited warranty on materials and all electronics.
- LED lamps are 25 years limited warranty.
- UL listed for damp locations & meets UL924, National Electrical Code, NFPA 70 and the Life Safety Code, NFPA 101.
