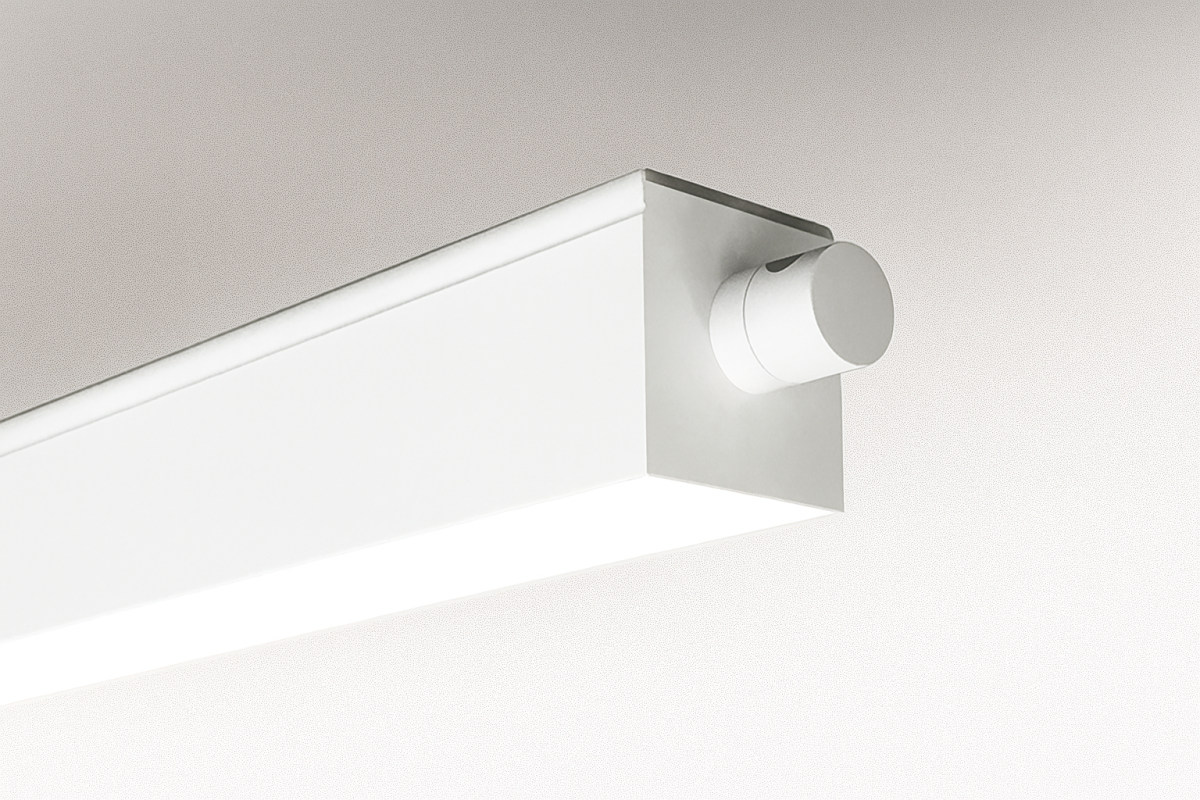

Cube 4-Wet Wet-Location Linear Pendant Light
The Cube 4-Wet, wet location approved for covered ceilings, is a line of extruded aluminum linear luminaire suitable for multiple applications such as portico and front driveway of commercial, general office, banking, retail and educational environments.
Contact us for availability and pricing information.
Need assistance?
Cube 4-Wet Wet-Location Linear Pendant Light
Cube 4-Wet Wet-Location Linear Pendant Light
Downloads & Resources
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
The Cube 4-Wet, wet location approved for covered ceilings, is a line of extruded aluminum linear luminaire suitable for multiple applications such as portico and front driveway of commercial, general office, banking, retail and educational environments.
Features:
- Die-Cast and extruded aluminum housing, available in direct only and direct/indirect housing.
- Housing is fully gasketed and sealed.
- Standard powder-coat textured white painted finish.
- Comes with snap-in UV resistant polycarbonate lens.
- 360º rotatable luminaire (field adjustable) only available for pendant mount.
- High temperature silicone gasket.
Mounting:
- Pendant (1/2" stem pipe) mount, pipe provided by others.
- Wall mount.
- Surface mount (direct only).
LED:
- High quality array LEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000/5000 (K).
- Color Rendering Index: > 80 (optional>90).
- Nominal Lamp Life: 100,000 hours.
- Reported L70 hours: +60,000 (55°C).
Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- 0-10VDC, 1%~100% dimmable driver as standard.
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).
ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.
Listing:
- ROHS.
- UL / CUL listed.
- Listed to UL 1598 and UL 8750.
- UL listed for wet location for covered ceilings.
- CEC Compliant EM (please contact for more information)
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limited warranty (optional).
- Bluetooth Mesh System available, please contact factory for more information.
