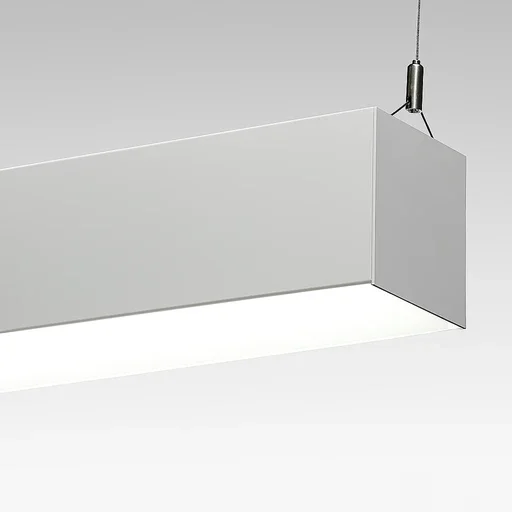

Cube 4 Linear Surface Mount Light
Cube 4 is a featured Architectural Linear fixture. Housing is formed by cold-rolled steel with a highly reflective die-formed white painted steel reflector. The snap-in acrylic lens has a matte finish and a diffuser (.125” thick) which is removable for LED module replacement. It is used for multiple applications such as commercial, general office, banking, retail and educational environments.
Contact us for availability and pricing information.
Need assistance?
Cube 4 Linear Surface Mount Light
Cube 4 Linear Surface Mount Light
Downloads & Resources
Enlighted
The documentation with system overview, installation details, and configuration information
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
Cube 4 is a featured Architectural Linear fixture. Housing is formed by cold-rolled steel with a highly reflective die-formed white painted steel reflector. The snap-in acrylic lens has a matte finish and a diffuser (.125” thick) which is removable for LED module replacement. It is used for multiple applications such as commercial, general office, banking, retail and educational environments.
Mounting:
- Compatible with most ceiling including T-bar, screw slot and drywall.
- Pendant, surface and wall mount.
LED:
- High quality array Samsung LEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000/5000 (K)
- Color Rendering Index: > 80
- Nominal Lamp Life: 100,000 hours.
- Reported L70 hours: +60,000 (55°C).
Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- 0-10V dimmable driver as standard.
- 0-10VDC dimming 1%~100%.
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).
ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.
Finish:
- Standard powder-coat textured white painted finish on exposed trim, consult factory for custom colors.
- Comes with snap-in acrylic lens as standard.
Listing:
- UL / CUL listed.
- Listed to UL 1598 and UL 8750.
- UL listed for dry & damp location.
- CEC Compliant EM (please contact for more information).
- Assembled in USA (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
