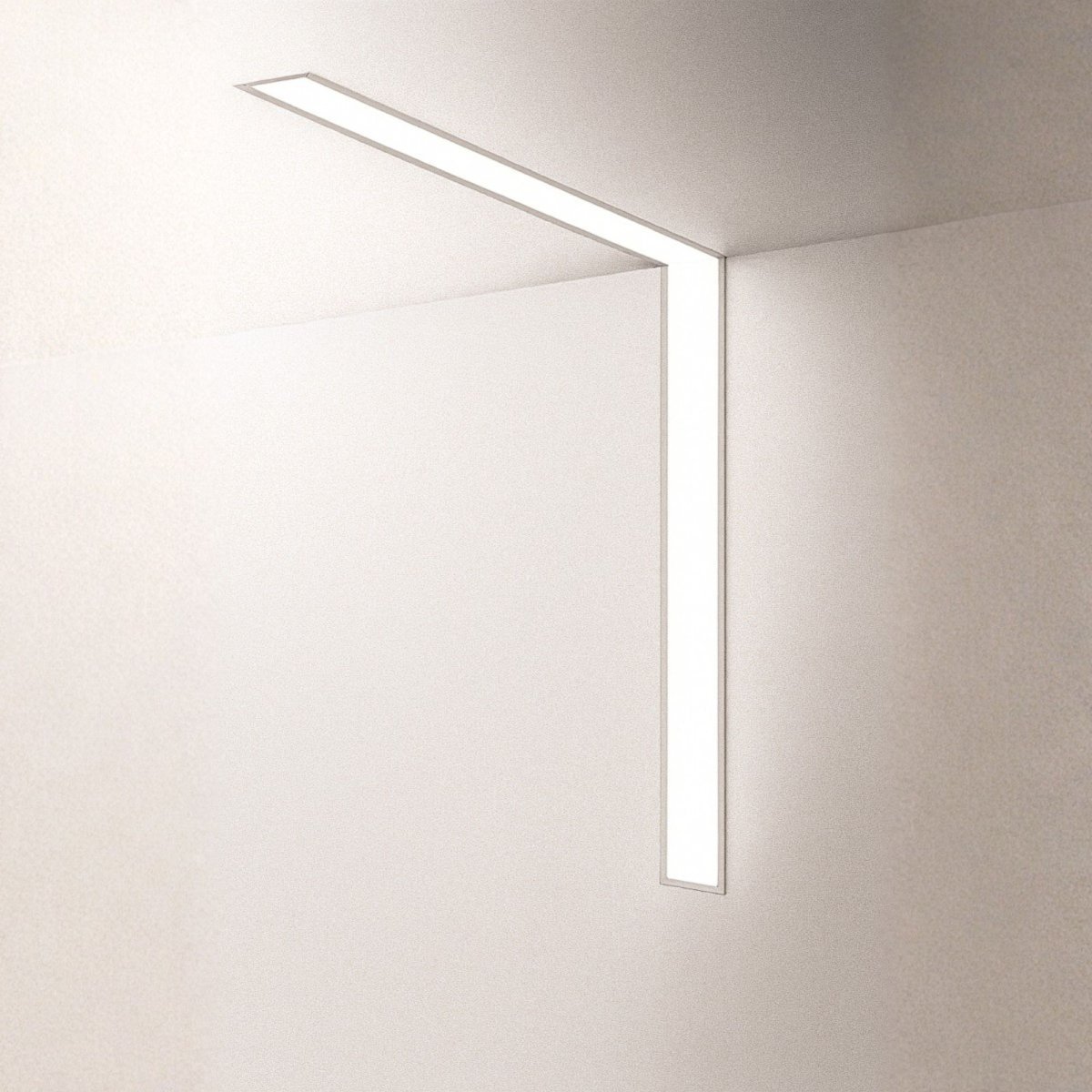

Cube 4-CW90 90-degree Recessed Light
The unique Cube 4-CW90 series offer versatile installation from wall to ceiling or ceiling to wall. This seamless 90º luminaire creates endless transverse runs and provides flexibility in uniting a space with lines of light. CUBE-CW90 is well designed for commercial hallway, builiding lobby, educational environments, office, retail, or anywhere to add visual appeal along the ceiling to wall line.
Contact us for availability and pricing information.
Need assistance?
Cube 4-CW90 90-degree Recessed Light
Cube 4-CW90 90-degree Recessed Light
Downloads & Resources
Enlighted
The documentation with system overview, installation details, and configuration information
Product Overview
The unique Cube 4-CW90 series offer versatile installation from wall to ceiling or ceiling to wall. This seamless 90º luminaire creates endless transverse runs and provides flexibility in uniting a space with lines of light. CUBE-CW90 is well designed for commercial hallway, builiding lobby, educational environments, office, retail, or anywhere to add visual appeal along the ceiling to wall line.
Mounting:
- Compatible only with drywall.
LED:
- High quality array LEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000/5000 (K).
- Color Rendering Index: > 80 (optional >90).
- Nominal Lamp Life: 100,000 hours.
- Reported L70 hours: +60,000 (55°C).
Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- 0-10V dimmable driver as standard.
- 0-10VDC dimming 1%~100%.
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).
ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.
Finish:
- Standard powder-coat textured white painted finish on exposed trim, consult factory for custom colors.
- Comes with snap-in acrylic lens as standard.
Listing:
- UL / CUL listed.
- Listed to UL 1598 and UL 8750.
- UL listed for dry & damp location.
- CEC Compliant EM (please contact for more information)
- Assembled in USA (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty. - RGB+W has 2 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
