Cube 2-Y Pendant Light
Cube2-Y

Cube 2-Y Pendant Light

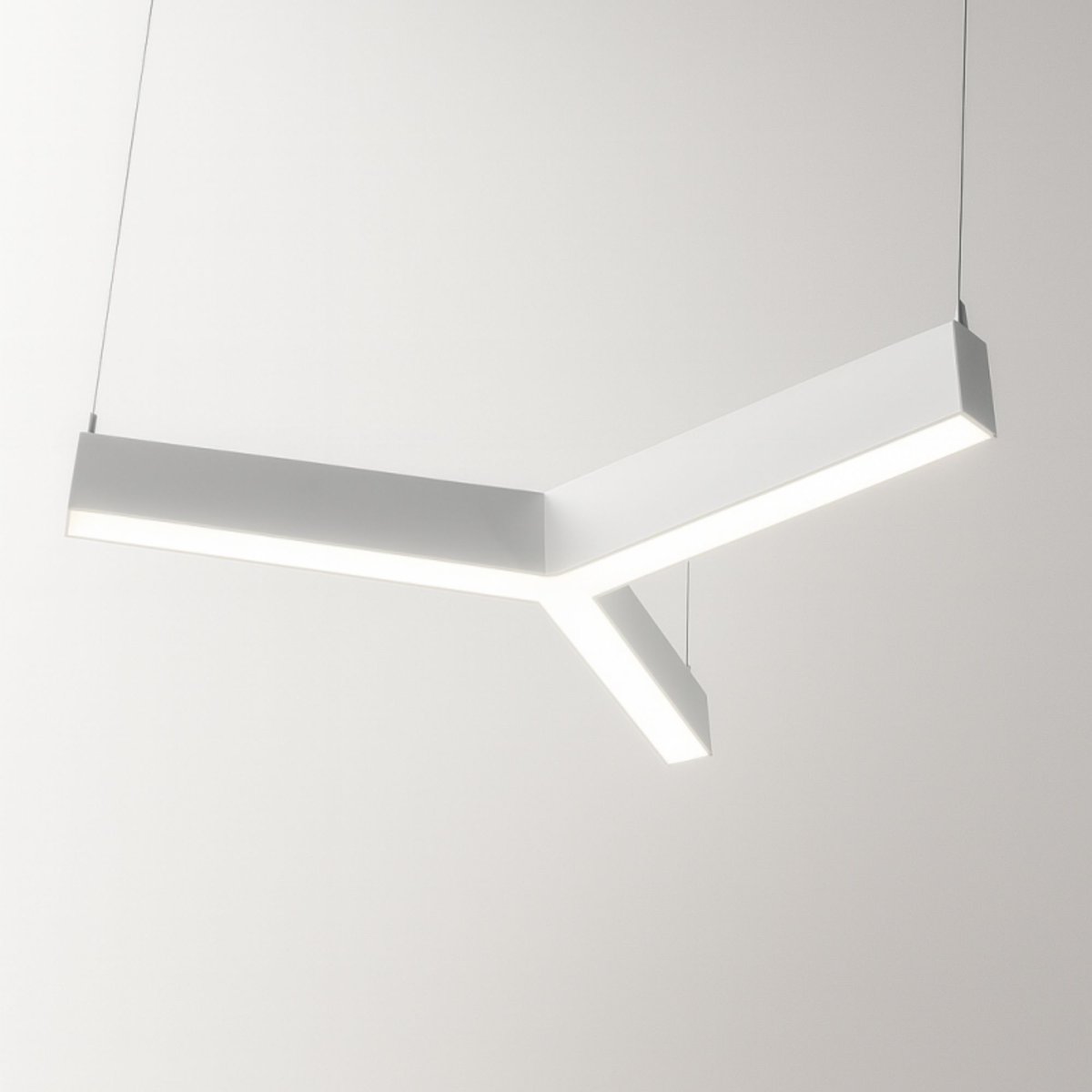

Cube 2-Y is a featured Architectural Shaped Linear fixture. Housing is formed by cold-rolled steel with a highly reflective dieformed white painted steel reflector. The snapin acrylic lens provides easy installation. It is used for multiple applications such as commercial, general office, banking, retail and educational environments.

Lutron Compatible W CCT Field Adjustable ARRA Compliant cULus Listed Utopia-BABA-Icon BAA Compliant Lutron® Vive™ Compatible EasySense Compatible Bluetooth® Compatible Autani Building Controls Approved Casambi® Compatible
Inventory and Lead Time

Contact us for availability and pricing information.

Build your exact fixture & ordering code
Need assistance?
Call us at (866) 471-7711
Ordering Code
Make your selections to build the code

This code identifies your exact fixture configuration — include it in your quote request or purchase order.

Cube 2-Y Pendant Light

Cube 2-Y Pendant Light

Cube 2-Y Pendant Light

Contact for Pricing

Downloads & Resources

Spec Sheet

Complete product specifications and technical details

View Download
Color Chart

Standard, non-standard, and custom finish options

View Download
Lutron Vive

Fixture control options

View Download
AMS Daylight

Lighting control sensor

View Download
AMS Bluetooth

Network lighting control utilizing bluetooth

View Download
Installation

Step-by-step installation instructions

Download
Easy-Sense

The documentation covering features, setup, and control options

Download
Wattstopper

The guide covering features, wiring, lens options, coverage, and configuration

Download

Product Overview

Cube 2-Y is a featured Architectural Shaped Linear fixture. Housing is formed by cold-rolled steel with a highly reflective dieformed white painted steel reflector. The snapin acrylic lens provides easy installation. It is used for multiple applications such as commercial, general office, banking, retail and educational environments.

Mounting:
- Pendant, surface mount.



LED:
- High quality array LEDs.
- Color Temperature: 2700/3000/3500/4000/5000 (K)
- Color Rendering Index: > 80 (optional > 90).
- Nominal Lamp Life: 100,000 hours.
- Reported L70 hours: +60,000 (55°C).



Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- 0-10V dimmable driver as standard.
- 0-10VDC dimming 1%~100%.
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.



Finish:

- Standard powder-coat textured white painted finish on exposed trim, consult factory for custom colors.
- Comes with snap-in acrylic lens as standard.



Listing:
- UL / CUL listed.
- Listed to UL 1598 and UL 8750.
- UL listed for dry & damp location.
- Assembled in USA (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty. - CEC Compliant EM (please contact for more information).
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.



Most variations can be BAA or BABA compliant, but not all. If BAA or BABA are important for your project you must mention them at the time of requesting a quote.

Specifications

Ordering Information
  • Compliance: BAA/BABA Compliant
  • BAA, BABA or ARRA Compliant:
  • cULus Listed: Yes
Performance Data
  • EasySense Compatible: Yes
  • Autani Controls Compatible: Yes
  • Vive by Lutron Compatible: Yes
  • Casambi Ready®: Yes
