Cube 1 Perimeter Linear Light

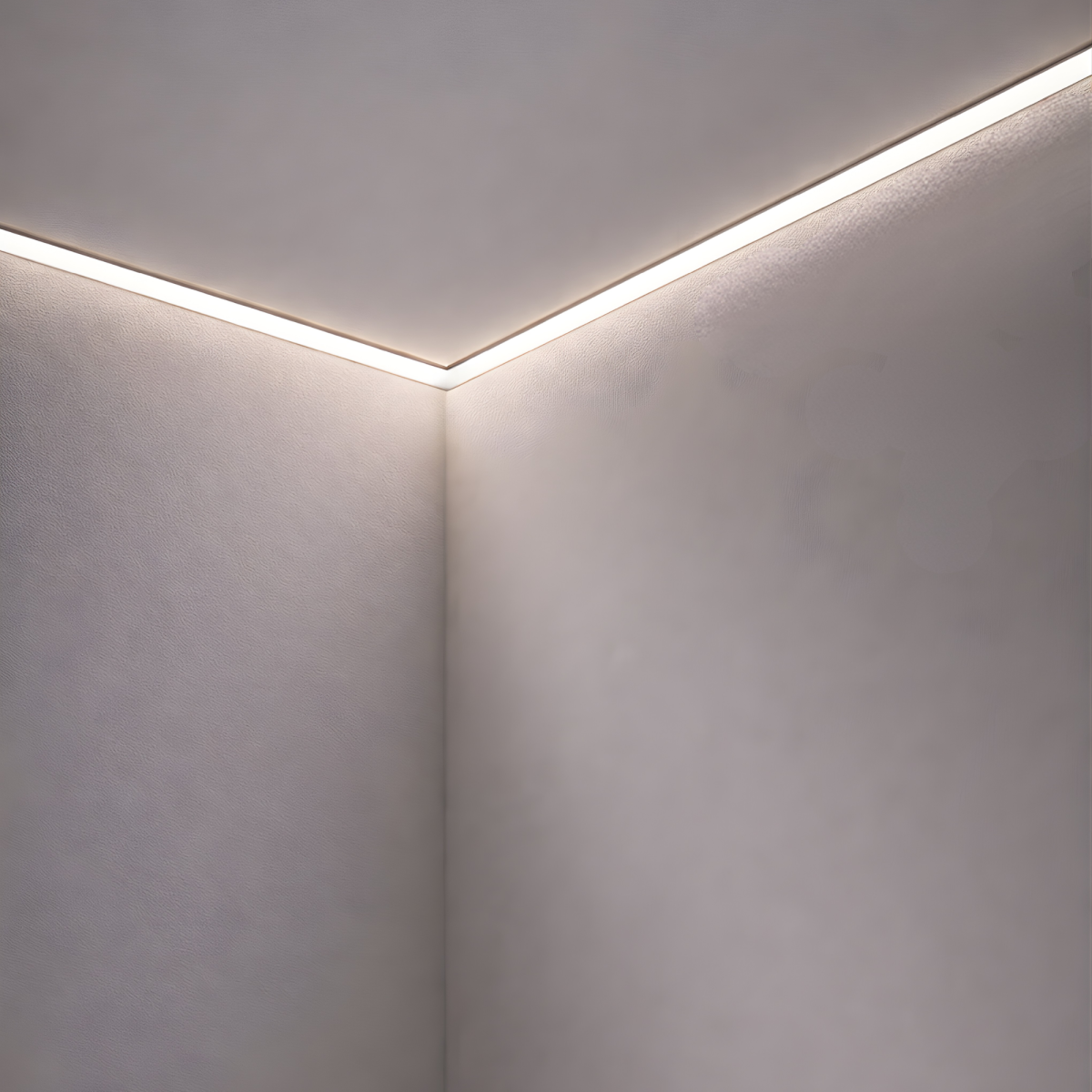

The Cube 1-Perimeter is a featured Architectural Linear fixture. Housing is extruded aluminum with a highly reflective die-formed white painted steel reflector. The snap-in acrylic lens has a matte finish and a diffuser which is removable for LED module replacement. The CUBE1 perimeter provides a glowing transition between ceiling and wall, perfect for multiple applications such as commercial, general office, banking, retail and educational environments.
Contact us for availability and pricing information.
Need assistance?
Cube 1 Perimeter Linear Light
Cube 1 Perimeter Linear Light
Downloads & Resources
Enlighted
The documentation with system overview, installation details, and configuration information
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
The Cube 1-Perimeter is a featured Architectural Linear fixture. Housing is extruded aluminum with a highly reflective die-formed white painted steel reflector. The snap-in acrylic lens has a matte finish and a diffuser which is removable for LED module replacement. The CUBE1 perimeter provides a glowing transition between ceiling and wall, perfect for multiple applications such as commercial, general office, banking, retail and educational environments.
Mounting:

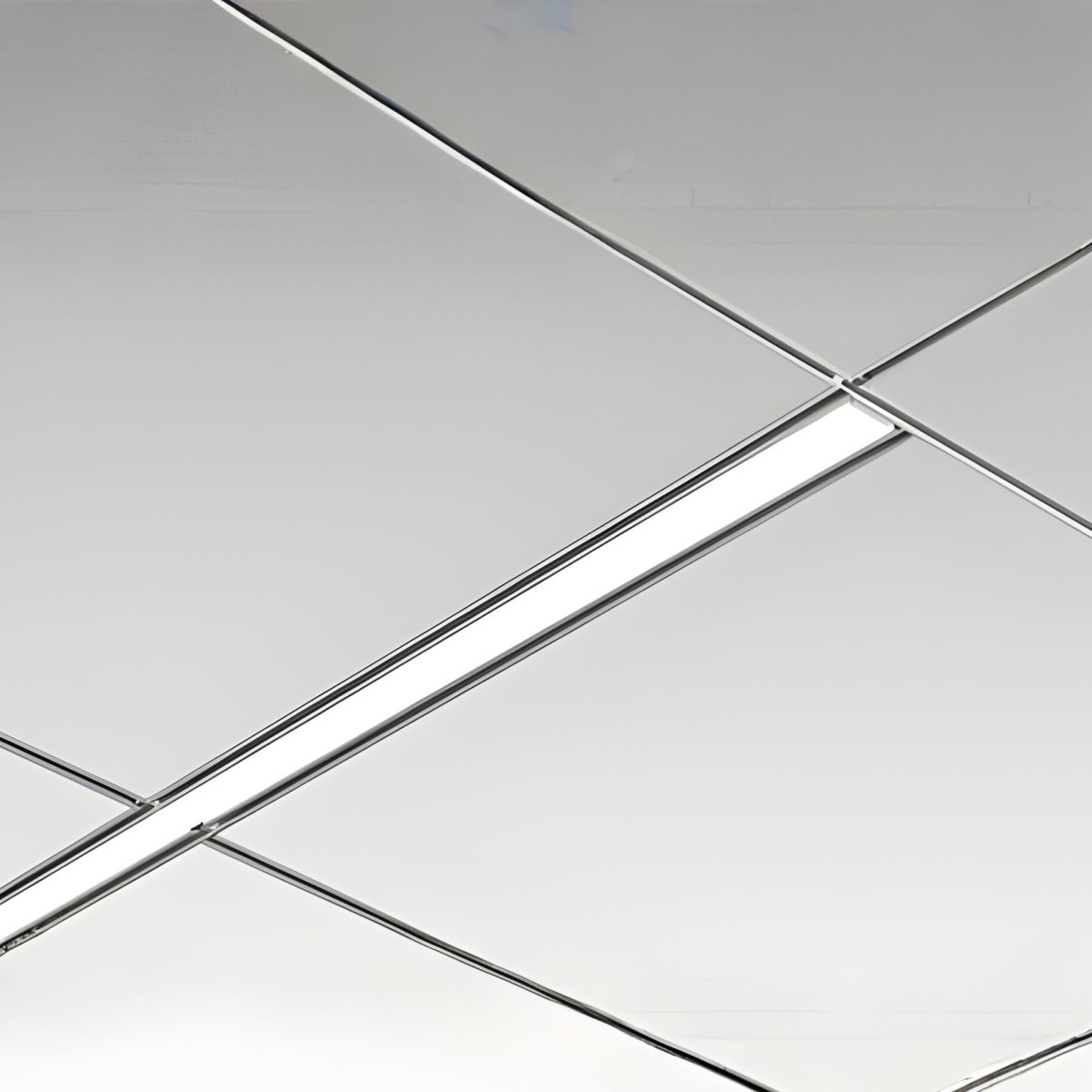

- Compatible with most ceiling including T-bar, screw slot and drywall.
LED:
- High quality arrayLEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000/5000 (K).
- Color Rendering Index: >80 (optional>90).
- Nominal Lamp Life: 100,000 hours.
- Reported L70 hours: +60,000 (55°C).
Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- 0-10V dimmable driver as standard.
- 0-10VDC dimming 1%~100%.
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).
ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.
Finish:
- Standard powder-coat textured white painted finish on exposed trim, consult factory for custom colors.
- Comes with snap-in acrylic lens as standard.
Listing:
- UL / CUL listed.
- Listed to UL 1598 and UL 8750.
- UL listed for dry & damp location.
- CEC Compliant EM (please contact for more information)
- Assembled in USA (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
