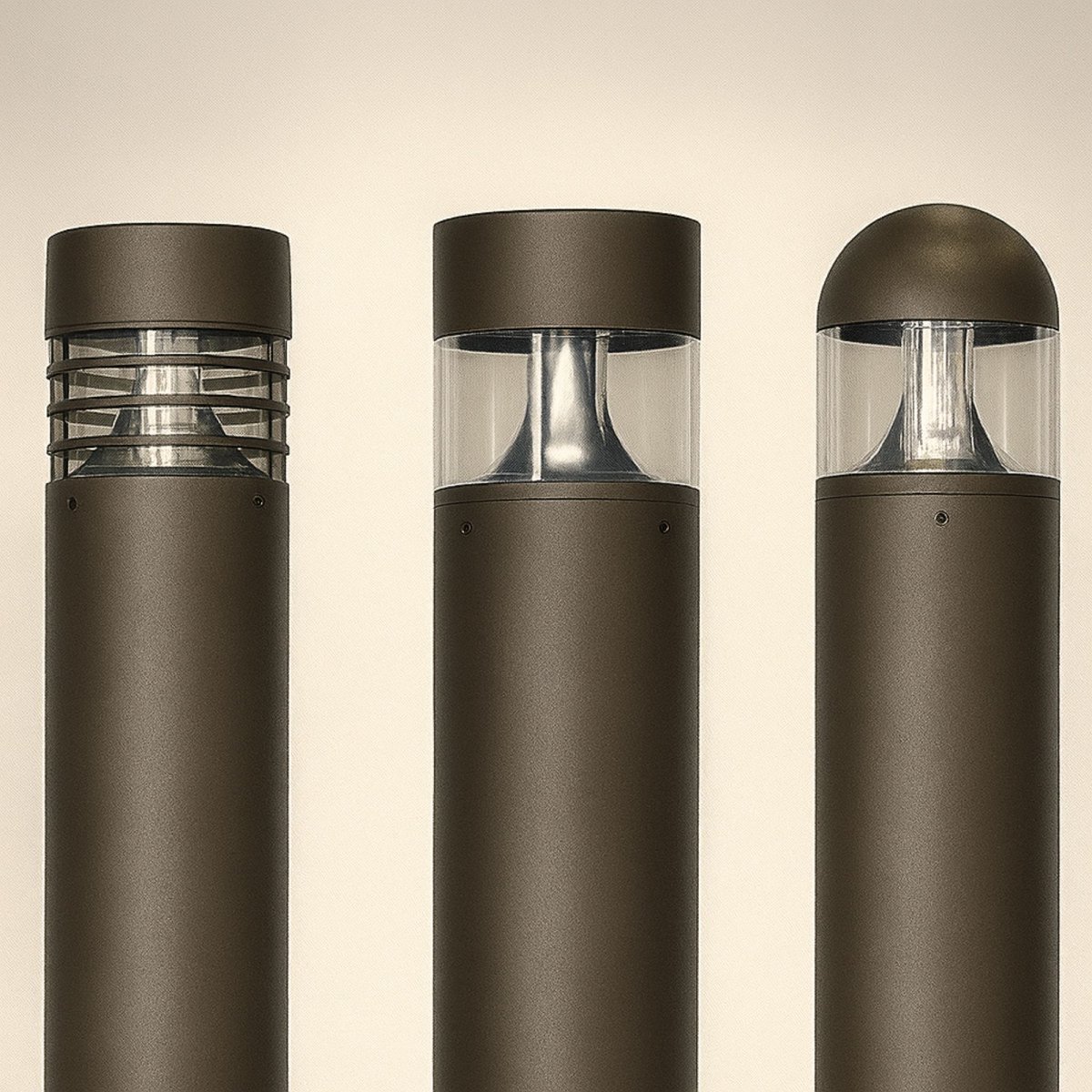

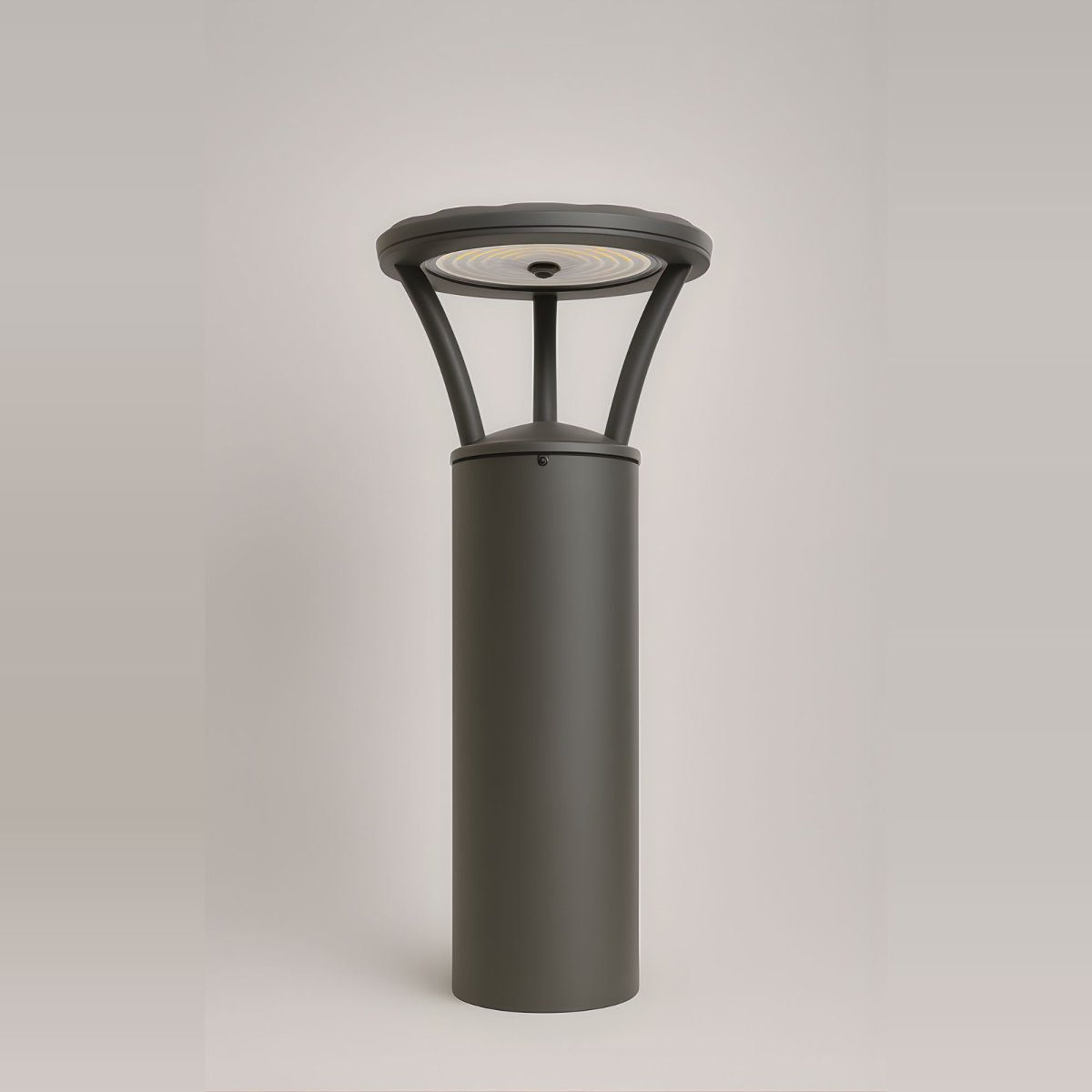

BLD6 LED Bollard
LED bollard light provide high light efficiency. Energy saving replacement of Metal Halide and High pressure sodium lamps with a driver inside. It is designed to work in building perimeter areas and public spaces completing a wide variety of architectural styles.
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
BLD6 LED Bollard
BLD6 LED Bollard
Downloads & Resources
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
LED bollard light provide high light efficiency. Energy saving replacement of Metal Halide and High pressure sodium lamps with a driver inside. It is designed to work in building perimeter areas and public spaces completing a wide variety of architectural styles.
Features:
- Extruded aluminum tube provides strength and durability as well as protects and conceals the component wiring.
- Corrosion and vandal resistant.
- UV stabilized Dark bronze powder-coated finish.
- Aluminum reflector designed to reduce glare and produce even distribution.
- Wattage and CCT field selectable.
Mounting:
- Ground mount.
- Template and anchor bolt are provided.
Lens:
- Clear UV resistant polycarbonate lens for optimal light transmission and protects the light engine compartment from harsh environments.
LED:
- High efficacy LED.
- Color Temperature: 3000/4000/5000 (K)
- Color rendering index: >80
- Life span: >50,000 hours
- 70% Lumen maintenance at 60,000 hours.
Electrical:
- Input voltage: 100-277Vac., 50/60Hz
- 1-10V dimming standard.
- 4Kv surge standard.
- Operating Temperature: -40°F (-40°C) ~ 104°F (40°C)
- Driver is mounted under the LED compartment for easy replacement and to protect from water that may accumulate in the base of the bollard. Torx security screws secure the LED compartment to the base to deter vandalism.
- Quick disconnect located near the terminal block for simple connection to the LED driver.
Listing:
- UL/cUL listed.
- Wet location listed.
- DLC listed.
- 5 years limited warranty.
- BAA compliant. (optional)
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant: BAA/BABA/ARRA options available
- DLC Premium Listed: Yes
- cULus Listed: Yes
Performance Data
- Wet Location Approved: Yes
- Vandal Resistant: Yes
- Casambi Ready®: Yes
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
