BLD2 LED Bollard Light
LED bollard light provide high light efficiency. Energy saving replacement of Metal Halide and High pressure sodium lamps with a driver inside. It is designed to work in building perimeter areas and public spaces completing a wide variety of architectural styles.
Contact us for availability and pricing information.
Need assistance?
BLD2 LED Bollard Light
BLD2 LED Bollard Light
Downloads & Resources
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
LED bollard light provide high light efficiency. Energy saving replacement of Metal Halide and High pressure sodium lamps with a driver inside. It is designed to work in building perimeter areas and public spaces completing a wide variety of architectural styles.
Features:
- Die-cast extruded aluminium housing.
- Superior performance extends to the detailed finish of the louvers.

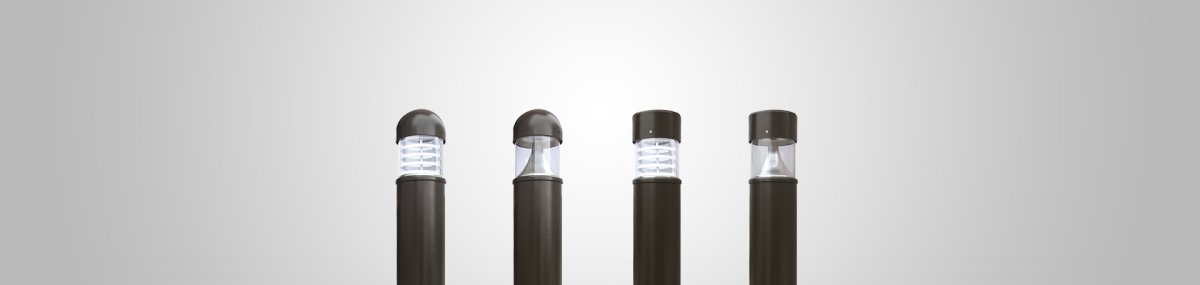

- Type A&C : Anodized aluminum louver with white finish. Type B&D : Anodized aluminum cone reflector.
- Fully sealed to prevent any leakage from the outside.
- Grating or sand blast reflector inside fixture can prevent light glare effectively.
- Without any hazardous material in fixture.
- 22lbs (10kg)
Mounting:
- Offers a impact resistant mounting and leveling design ensuring life long performance.
- Anchor bolts and base plate are provided as standard.
Optic:
- Aluminum louver installed as standard for superior performance.
- U.V stabilized polycarbonate cover.
LED:
- CREE LED.
- Color Temperature: 3000/4000/5000 (K)
- CRI: >70
- 360° distribution.
- LED Module: High efficiency up to 92 lm/W.
- Service life: Greater than 50,000 hours(L70) minimizing maintenance frequency.
- Proprietary binning for uniform color.
Electrical:
- Ambient Operating Temperature: -4°F (-20°C) ~ 113°F (45°C).
- Power Factor: >0.95
- Input Voltage: 120V-277V, 50/60Hz
- 347-480V is operated with 347-480V LED driver, not with 120-277V step-down transformer.
Listing:
- cETLus listed.
- LM79, LM80 available.
- 5 years warranty.
- Suitable for wet location.
- ARRA compliant. (optional)
Need a Custom Configuration?
Our team can help you specify the perfect configuration for your project. Contact us for custom options or integration assistance.
