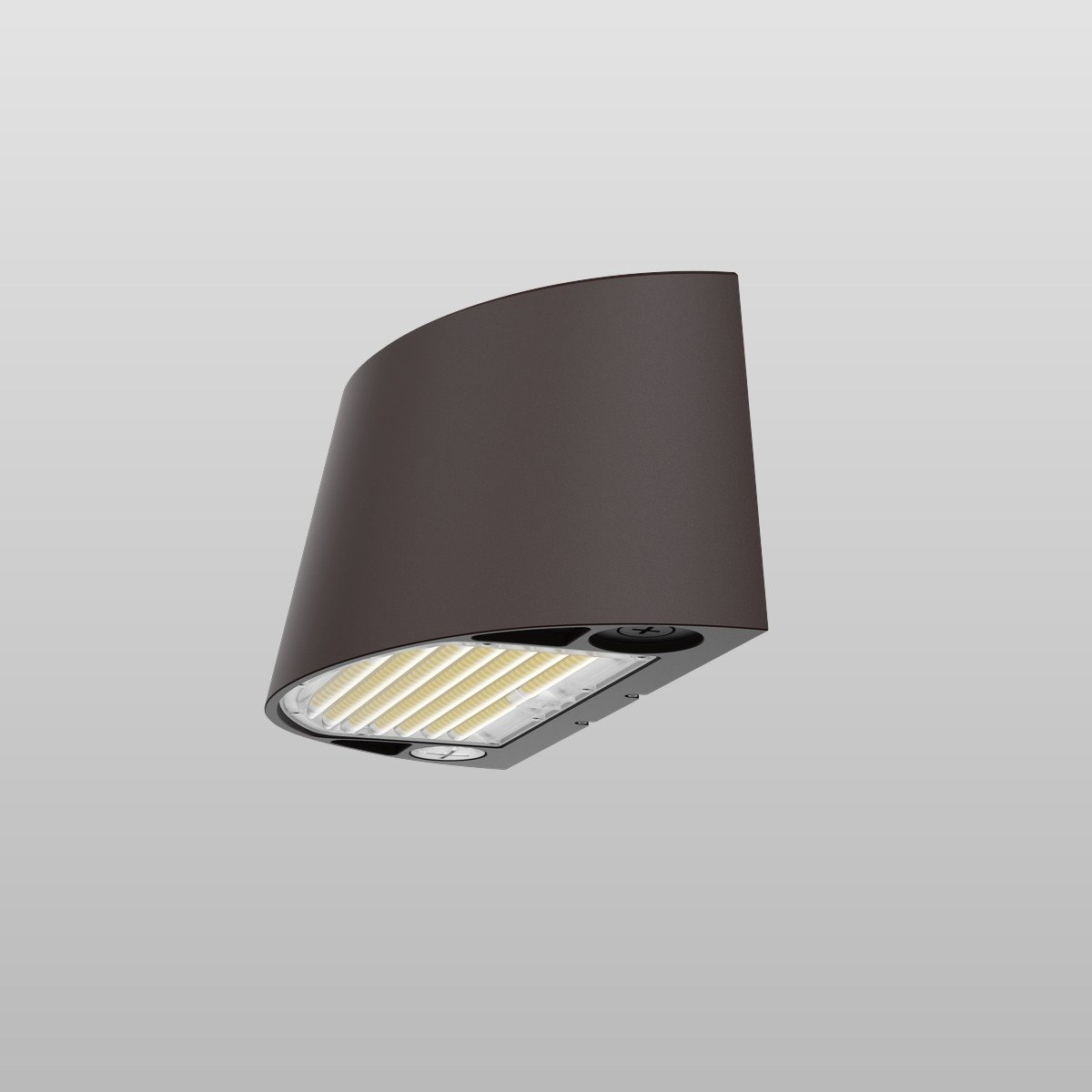

ALW-R LED Architectural Wall Mount Radius
The radius wall sconce down light is ideal for walkways, building exterior walls, parking areas, entrances, underpasses, loading docks and recreation areas.
Inventory and Lead Time
Contact us for availability and pricing information.
Build your exact fixture & ordering codeNeed assistance?
Call us at
(866) 471-7711
Product Configurator
Build Your Ordering Code
Every option from the spec sheet, validated as you choose — your exact fixture, one code.
Ordering Code
Make your selections to build the code
This code identifies your exact fixture configuration — include it in your quote request or purchase order.
ALW-R LED Architectural Wall Mount Radius
ALW-R LED Architectural Wall Mount Radius
Contact for Pricing
Downloads & Resources
Photometric IES Files
Photometric data and light distribution diagrams for lighting performance analysis.
Product Overview
Features
- 13" full cut-off LED wall pack.
- ADC12 aluminum die-casting housing for excellent heat dissipation.
- Architectural dark bronze finish standard.
- Field adjustable wattage and CCT.
- Field adjustable distribution: up/down or 100% down.
- Automated dusk to dawn photocell functionality. Field adjustable on/off switch.
- Optional microwave motion sensor, and EM.
Distribution
- Type III (std.)
- Field adjustable distribution: up/down or 100% down.
- Polycarbonate lens.
Mounting
- Wall mount (quick mount plate included).
- Easily installed on recessed junction boxes or direct mounts to the wall with feed thru conduit access.
LED
- CRI >80.
- Field adjustable wattage: 40/50/60/80W.
- Field adjustable color temperature: 3000/4000/5000K.
- Lumen efficacy: up to 150 lm/W.
- L70 @ 50,000 hrs.
Electrical
- Input Voltage: 120V–277V, 50/60Hz standard.
- PF ≥ 0.90, THD < 20%.
- Operating temperature: -40°F (-40°C) to 122°F (50°C) standard; 32°F (0°C) to 104°F (40°C) with EM.
- 0-10V dimming standard.
- L-N 6kV, L-N-P 6kV surge protection (std.)
Listing
- UL listed for wet location.
- DLC Premium listed.
- IP65 rated.
- 5 years limited warranty.
- BAA compliant (optional).
Specifications
Ordering Information
- BAA, BABA or ARRA Compliant: BAA/BABA/ARRA options available
- DLC Premium Listed: Yes
- cULus Listed: Yes
Performance Data
- Distribution Selectable: Yes
- Autani Controls Compatible: Yes
- Avi-on Bluetooth Compatible: Yes
- Casambi Ready®: Yes
