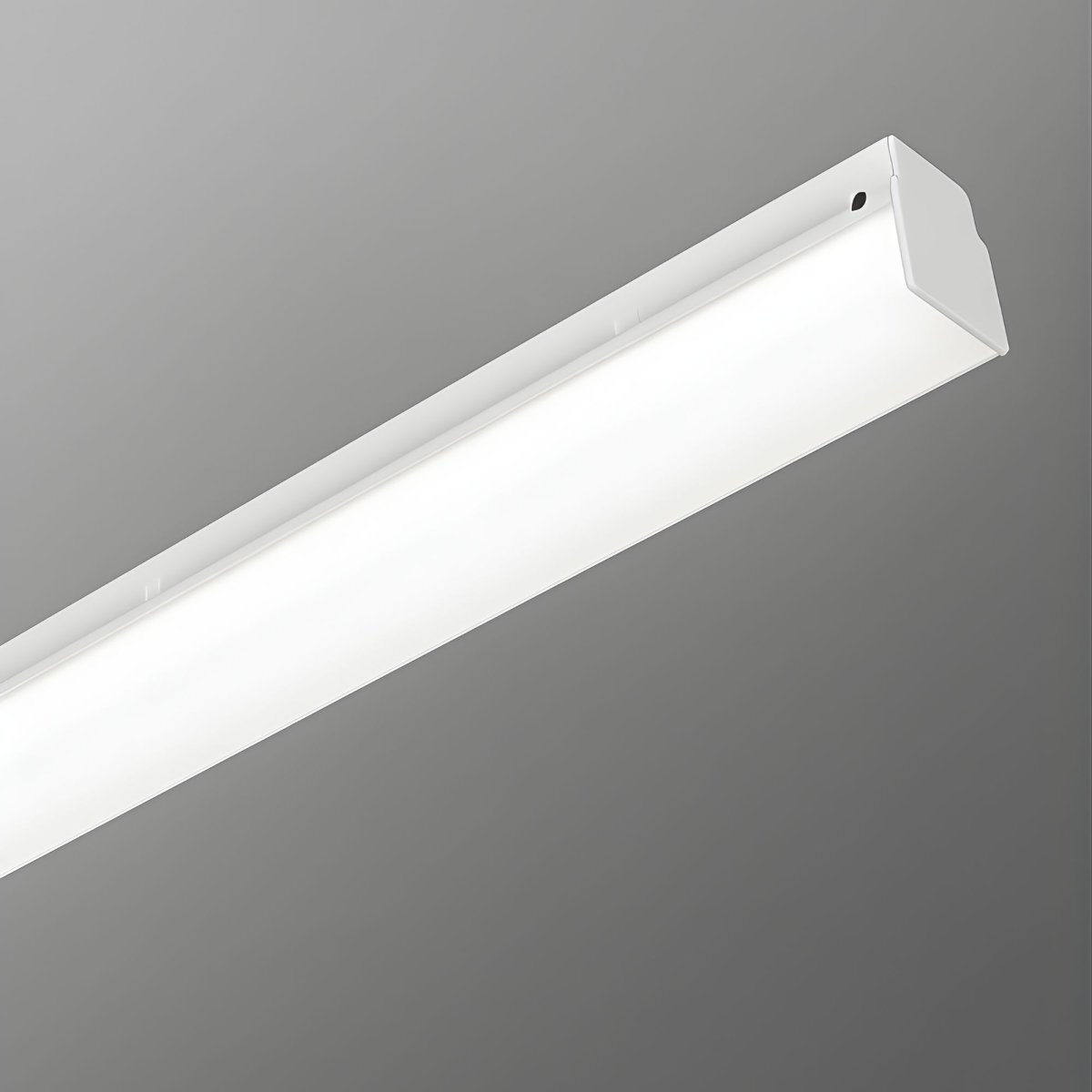

SS LED Surface Mount Slim Strip Light
The LED slim strip light series are more efficient and compact. The LED technology used illuminates a crisper brightness while saving more energy to that of the traditional lights. Its functionality makes it a standard fixture used in storage areas, displays, institutions, industrial and retail applications.
Contact us for availability and pricing information.
Need assistance?
SS LED Surface Mount Slim Strip Light
SS LED Surface Mount Slim Strip Light
Downloads & Resources
Photometric
Photometric data and light distribution diagrams for lighting performance analysis.
Enlighted
The documentation with system overview, installation details, and configuration information
Product Overview
The LED slim strip light series are more efficient and compact. The LED technology used illuminates a crisper brightness while saving more energy to that of the traditional lights. Its functionality makes it a standard fixture used in storage areas, displays, institutions, industrial and retail applications.
Features:
- Die-formed steel channel with knock-outs for versatile configuration and simple mounting.
- Available with 1 or 2 rows of LED, and in single unit lengths or as tandems.
- One continuous lens for 8-feet fixtures.
- Finish is high-gloss baked white enamel over rust inhibiting phosphate coating for maximum corrosion resistance.
- 11.9% uplight (RF lens), 13.4% uplight (SF lens).
- Paint after fabrication.
Mounting:
- Fixture is wall mounted(Not available with sensor option), surface mounted, or suspended mounted with chains, stems or cables.
- Joiner clip provided for easy continuous run.
- Metal belly band provided to eliminate light leak from space between lenses in continuous run.
- Compatible with most ceiling types.
LED:
- High quality array LEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000/5000 (K)
- Color Rendering Index: > 82.8
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours
Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- Generic : 0-10V 10% dim. (GR)
- Minimum starting temperature: -4°F (-20°C) ~ 122°F (50°C)
ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.
Listing:
- UL/CUL listed and labeled.
- Listed to UL 1598 and UL 8750.
- DLC listed.
- Suitable for damp locations.
- CEC Compliant EM (please contact for more information).
- ARRA compliant (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
