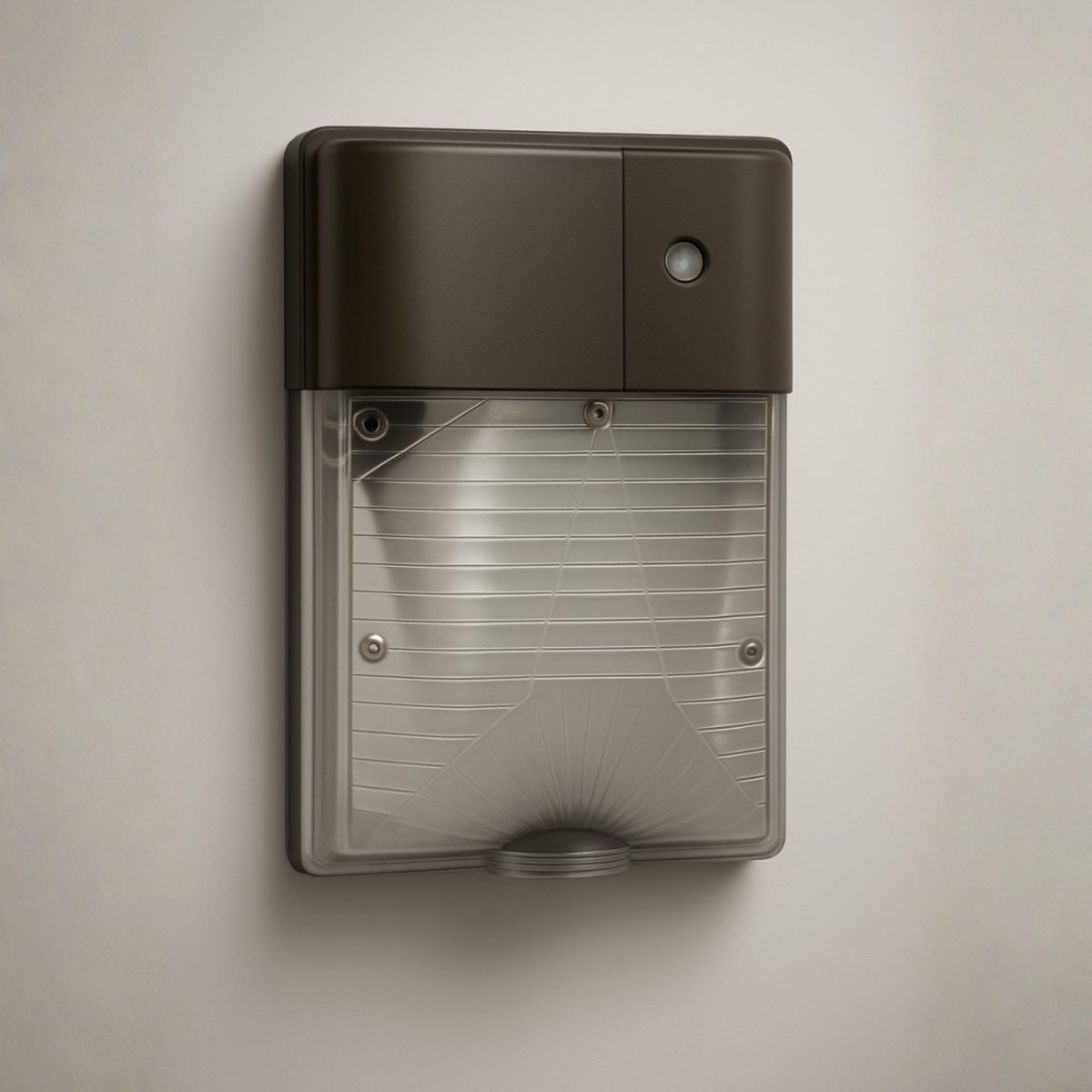

MWP1-2G Mini LED Wall Pack
Cast in a traditional design, the LED wall mount luminaire offers the shape you’ve grown accustomed to coupled with the high-powered and energyefficient LEDs you want. Photocell for dusk to dawn operation. It is ideal for safety , security and any facilities.
Contact us for availability and pricing information.
Need assistance?
MWP1-2G Mini LED Wall Pack
MWP1-2G Mini LED Wall Pack
Downloads & Resources
Product Overview
Cast in a traditional design, the LED wall mount luminaire offers the shape you’ve grown accustomed to coupled with the high-powered and energyefficient LEDs you want. Photocell for dusk to dawn operation. It is ideal for safety , security and any facilities.
Features:
- Sealed die-casting profile for indoor and outdoor applications.
- Standard photocell for dusk to dawn operation which is ideal for safety, security and facilities.
- Polycarbonate clear lens.
Mounting:
- Surface wall mount.
LED:
- LM79, LM80 Compliant.
- Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
- Lumen Maintenance L70 greater than 54,000 hours IESNA TM-21.
- Scalable Lumen Packages from 1600 - 2700 lm.
- Replacing 50-70W Metal Halide.
- Color temperature: 4000 / 5000K(Std.)
- CRI +70.
Electrical:
- Power factor >90%, THD <20%, and an expected life of 50,000 hours.
- Universal 120-277 VAC input voltage.
- Operating temperature: -40ºC to 40ºC (-40ºF to 104ºF)
Listing:
- Listed to UL 1598 and UL 8750.
- UL / cUL wet location listed.
- 5 years warranty.
- ARRA compliant. (optional)
