Features:

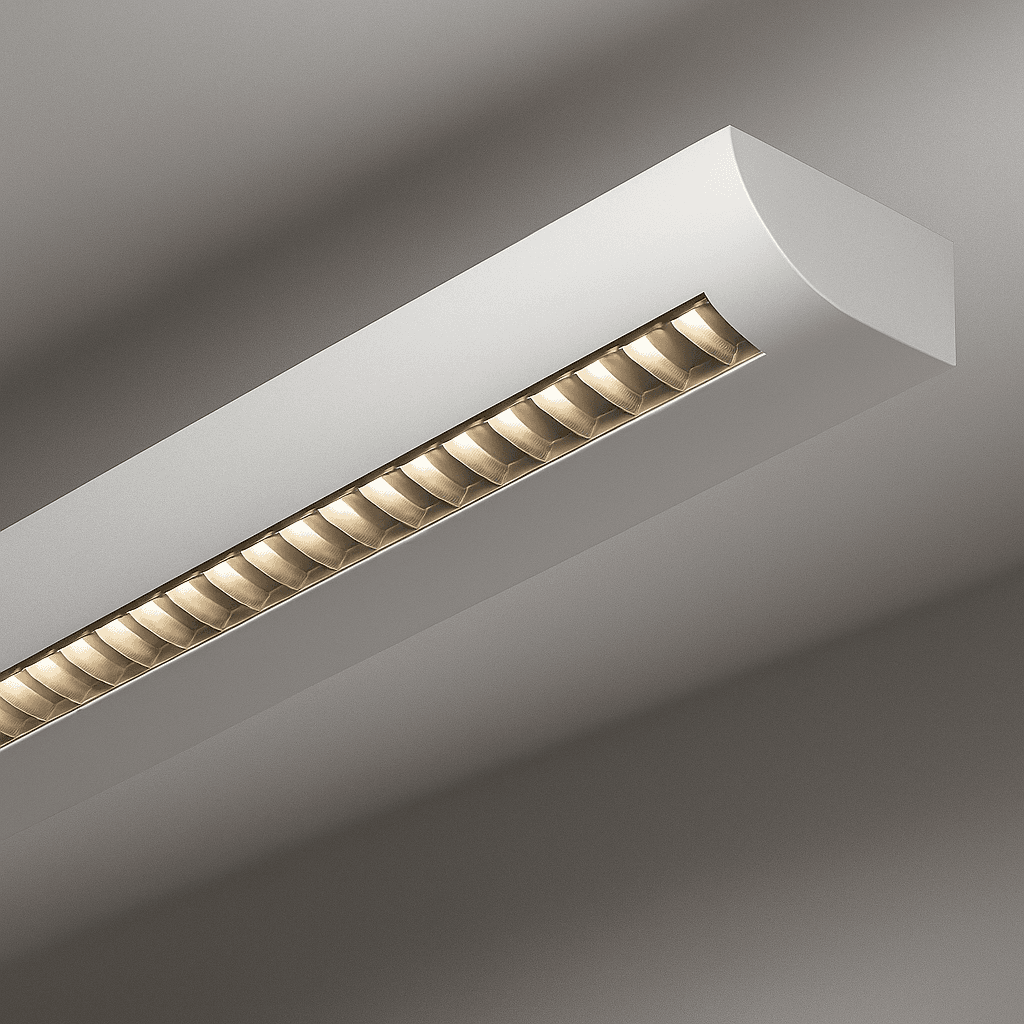

- Die formed 20 gauge cold-rolled steel housing. Flat steel end plate standard. Powder coated for a long life finish. White finish is standard. Die cast aluminum spade end cap optional.
- 2’, 4’, 8’ and 12’ individual fixture sections for nominal suspension spacing of 2’, 4’, 8’ and 12’. Using 2’, 4’, 8’ and 12’ sections can be joined to form longer length fixtures.
- Parabolic semi-specular aluminum louvers, white painted steel baffle (WBL) (standard) or white painted perforated steel baffle (WPL). Optional Opal White Diffuser (OP) overlay on louver.
- Die formed high-reflective white reflector is standard. Optional anodized specular aluminum reflector.
- Up light and down light distribution.
- Textured matte white polyester powder paint.

Mounting:
- Provided with a standard 48” length aircraft cable mount kit for suspended mounting.

LED:
- High quality array LEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000/5000 (K)
- Color Rendering Index: > 82.8
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours

Electrical:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- 0-10V dimmable driver as standard, 1%~100%.
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

Listing:
- UL/CUL listed.
- Listed to UL 1598 and UL 8750.
- Suitable for damp locations.
- CEC Compliant EM (please contact for more information).
- ARRA compliant (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
